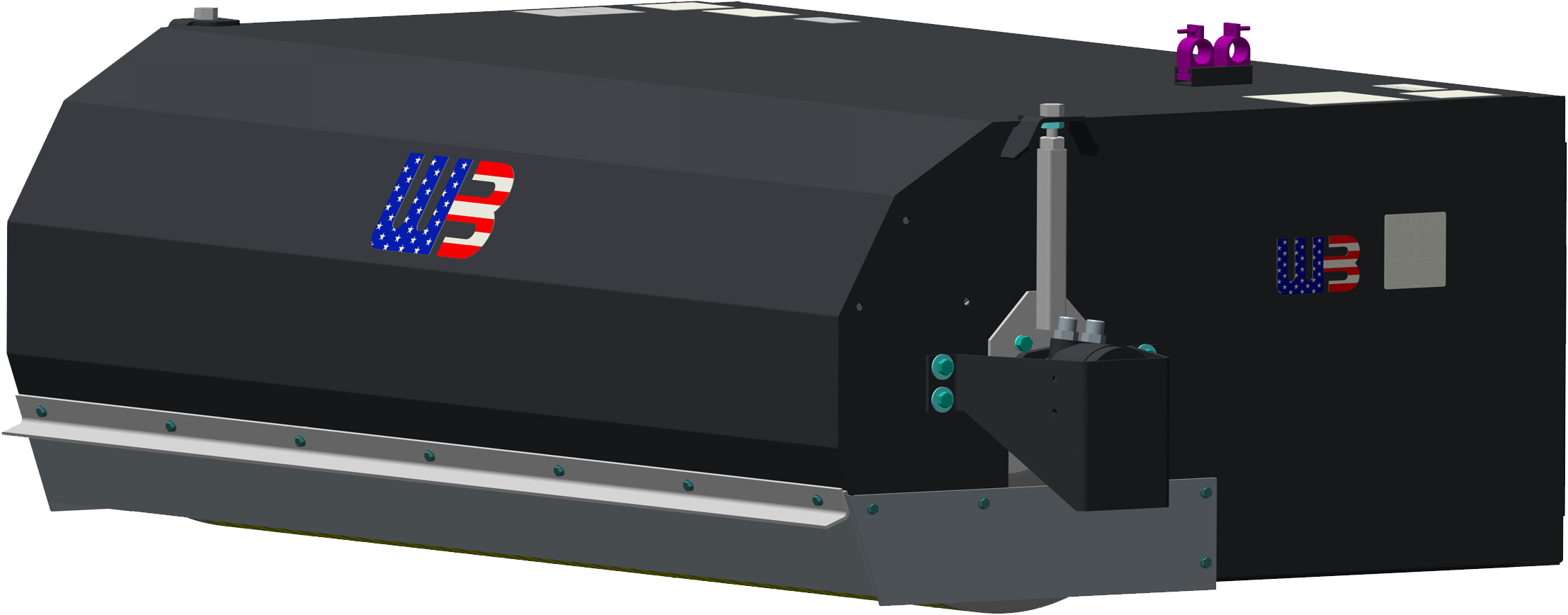

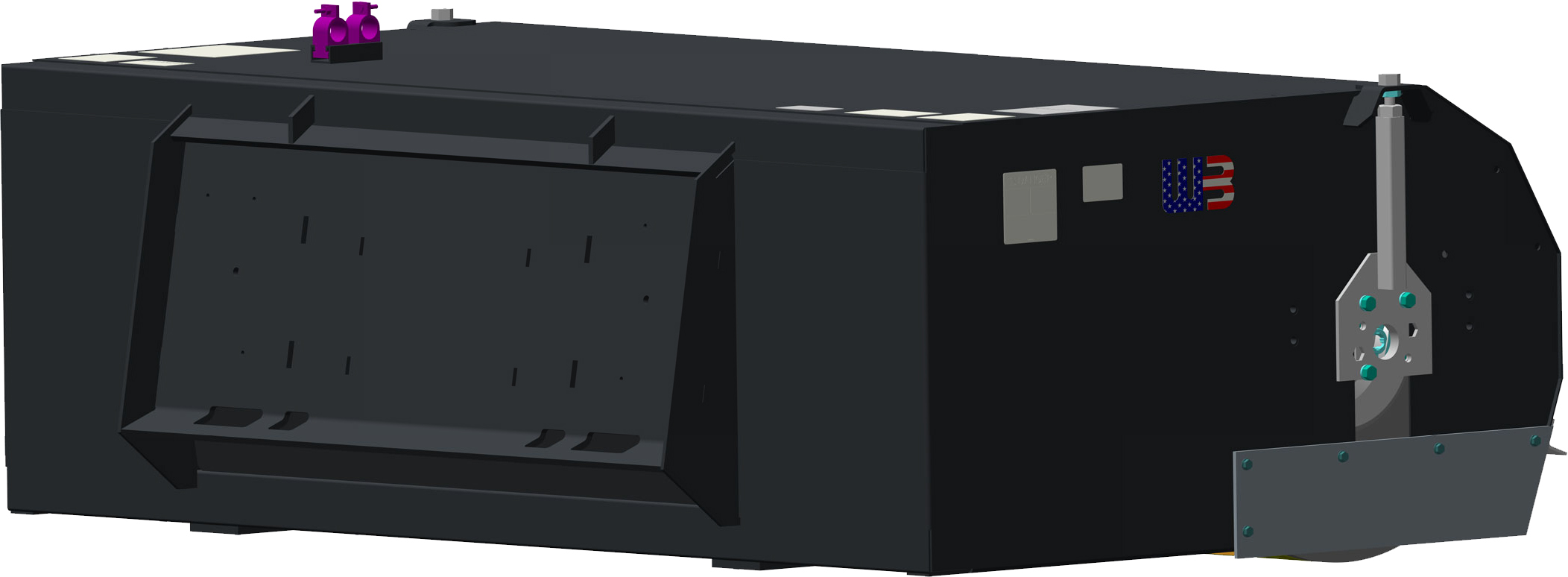

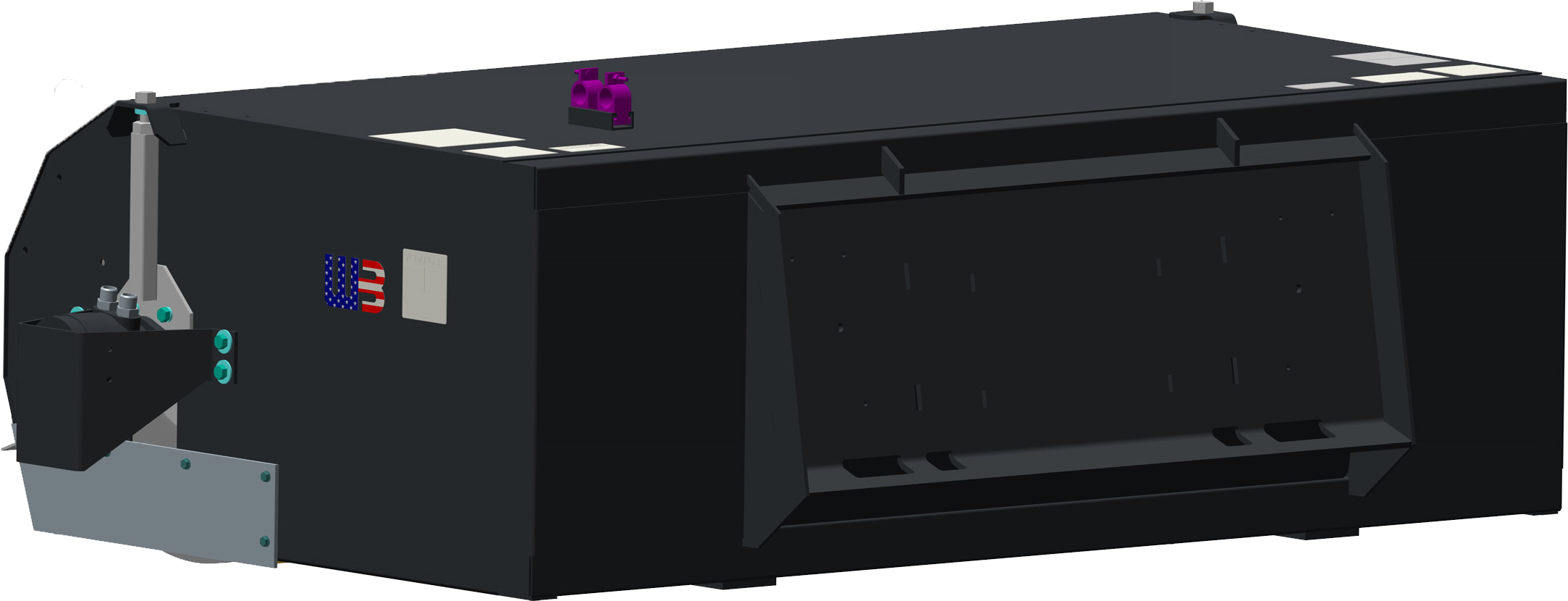

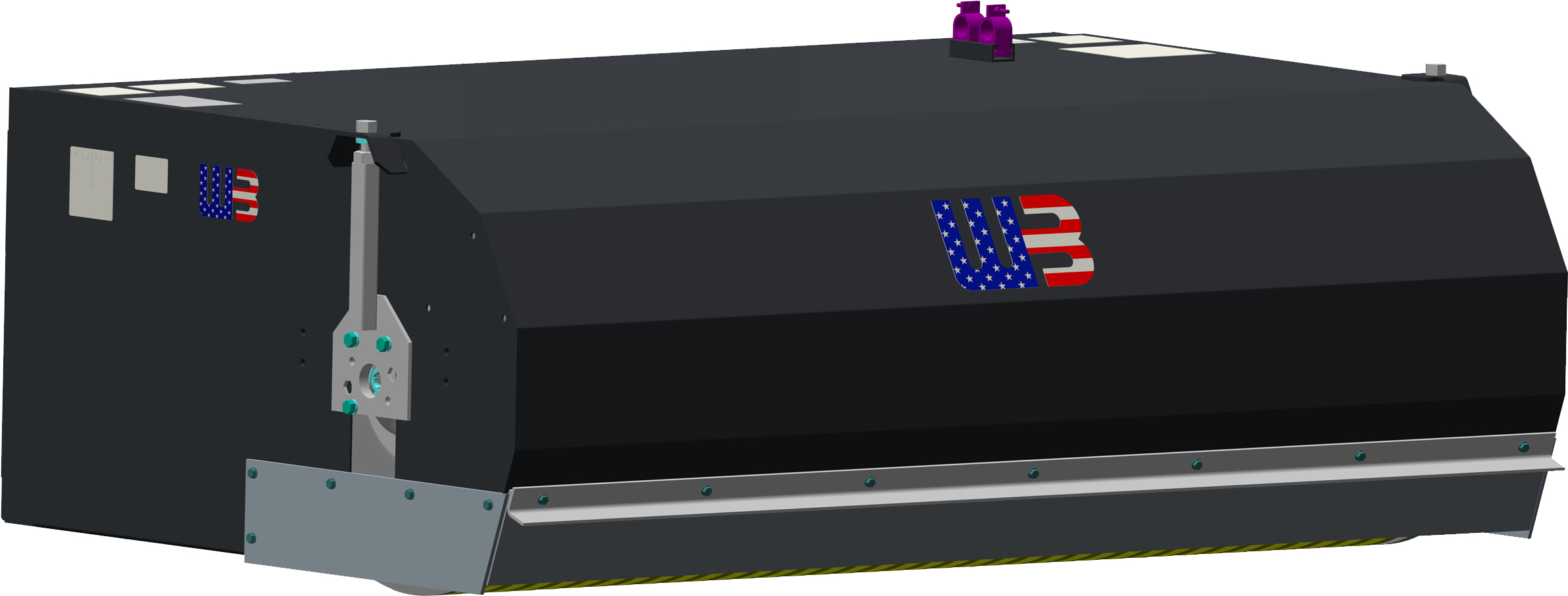

This hydraulic pick-up broom for skid steers and loaders is the ideal rotary broom for many applications. From dirt, debris and grass this is the perfect solution for clearing and cleaning.

  • Hydraulically driven rotary pick-up broom
  • Brush and core assembly can be removed from frame without disconnecting hoses from drive motor(s)
  • Brush is lifted by means of the prime mover
  • Brush hopper has heavy duty, self-aligning, flange style bearings support the broom core
  • Hopper is dumped by using the loader bucket dump function
Sweeping Widths Available: 5', 6', 7'

Hopper Capacity:
     5’ – 13.2 cu. Ft.
     6’ – 15.8 cu. Ft.
     7’ – 18.2 cu. Ft.

Brush Diameter: 25"

Core Diameter: 6 3/8"

Broom Speed: up to 200 RPM, dependent on prime mover

Drive: Hydraulic

     Low Flow

     Drive Motor
     Sprinkler System
     Sight Indicators
     Gutter broom(s)
