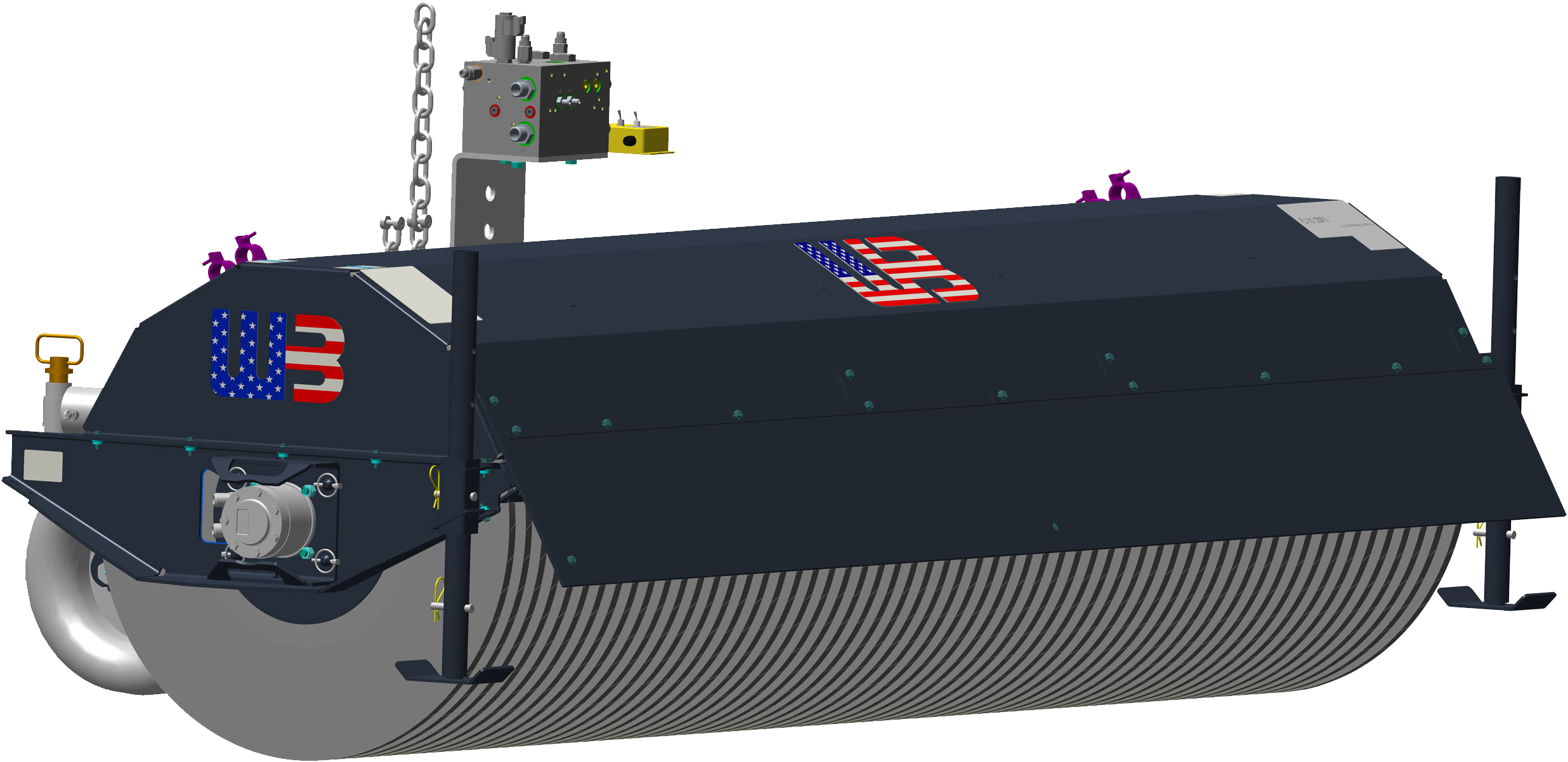

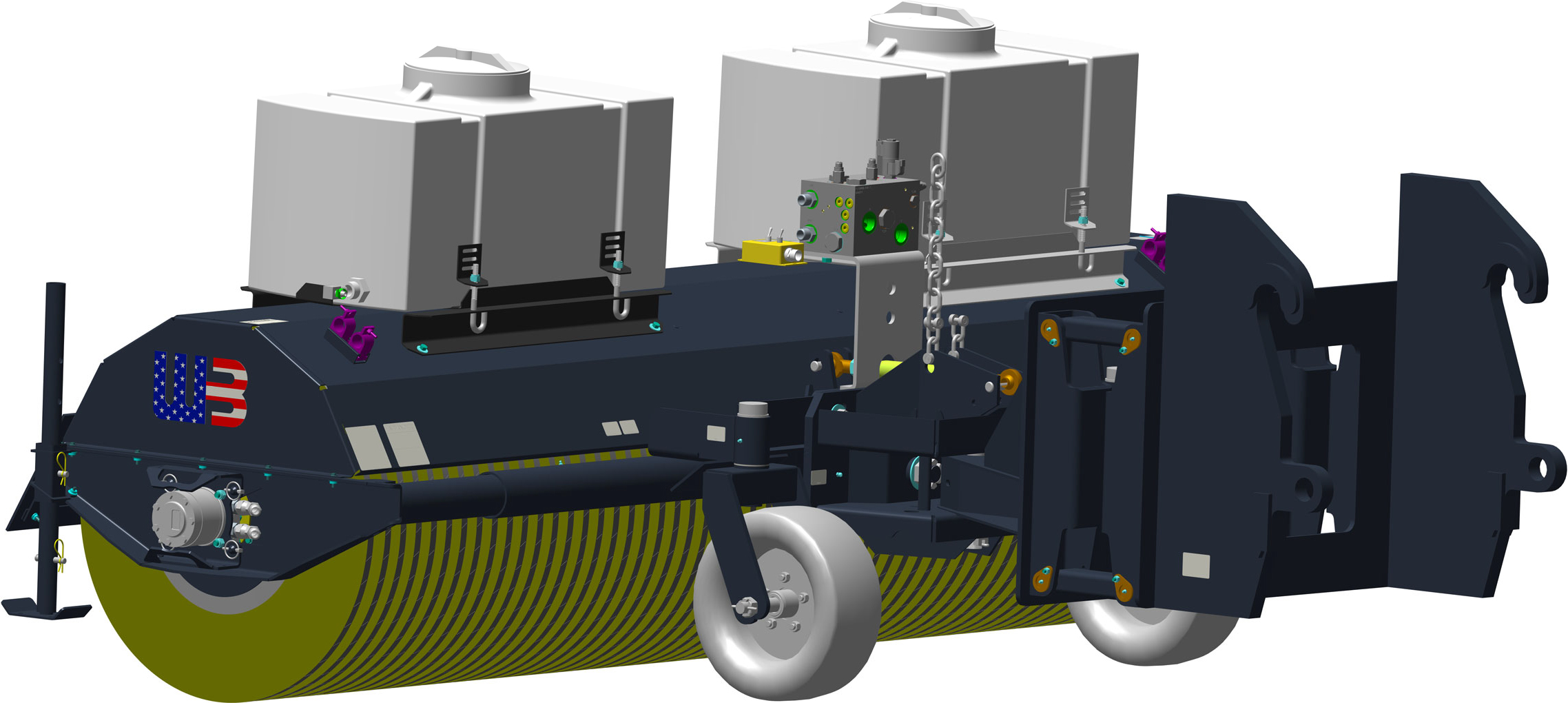

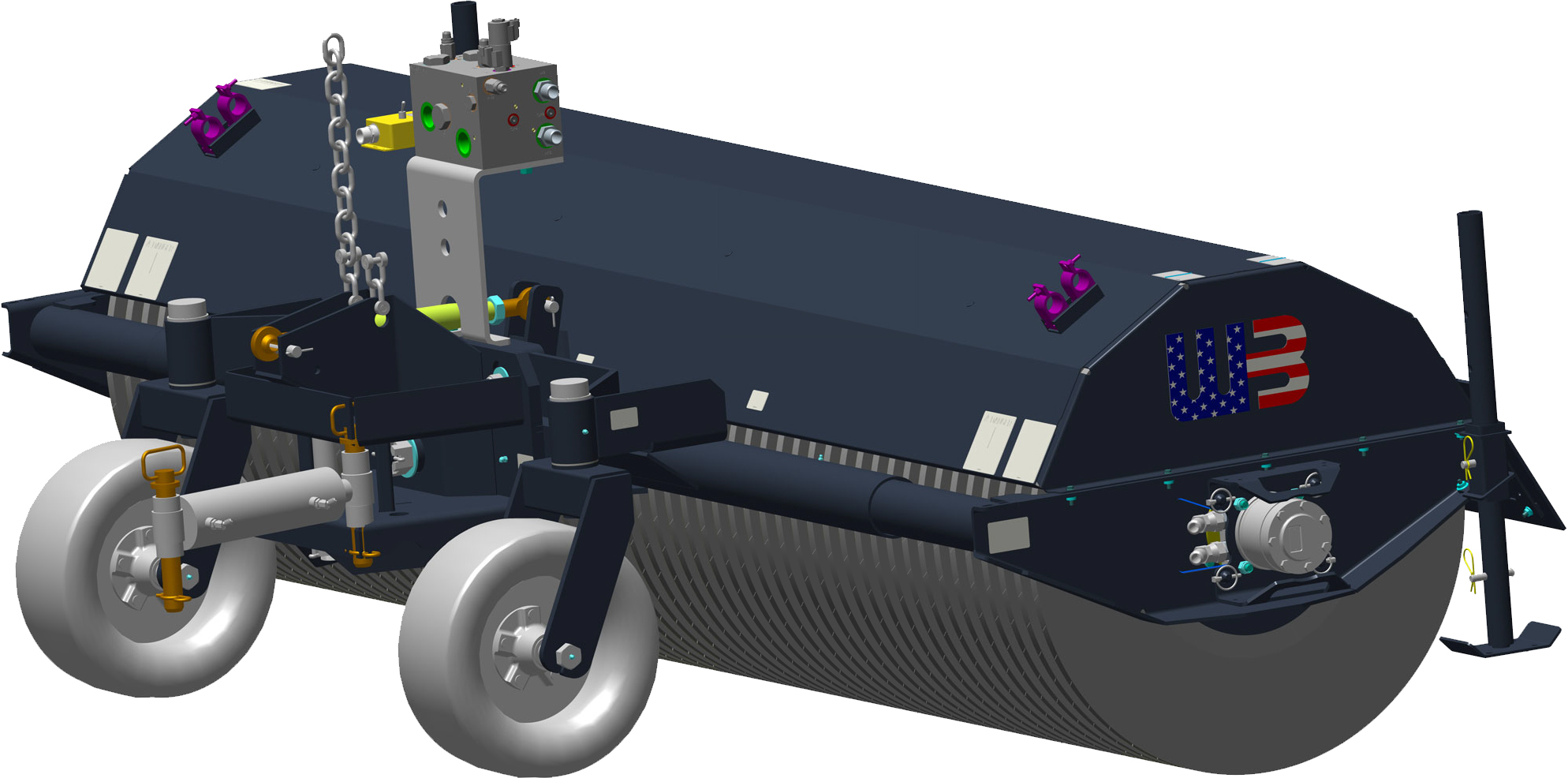

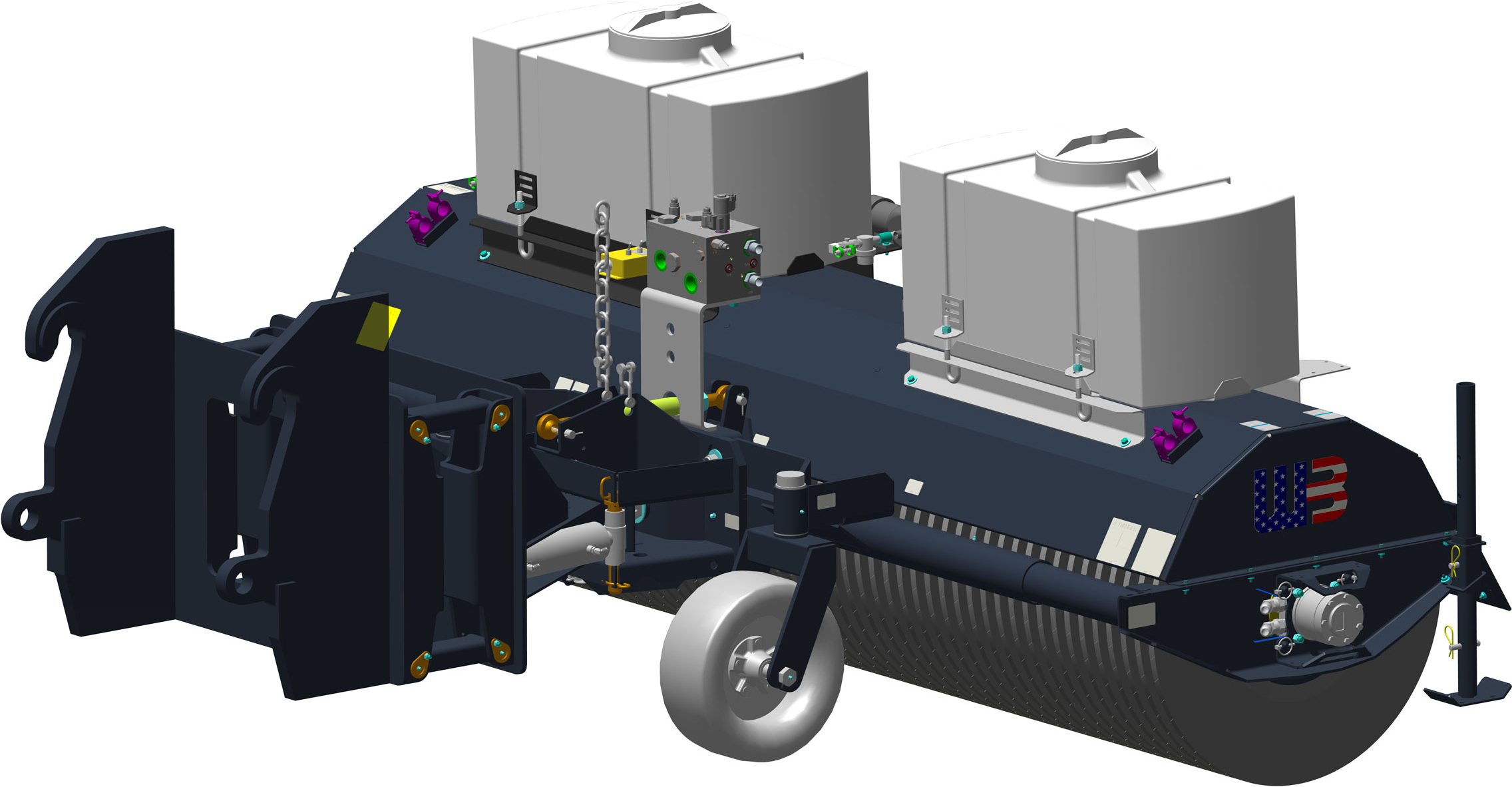

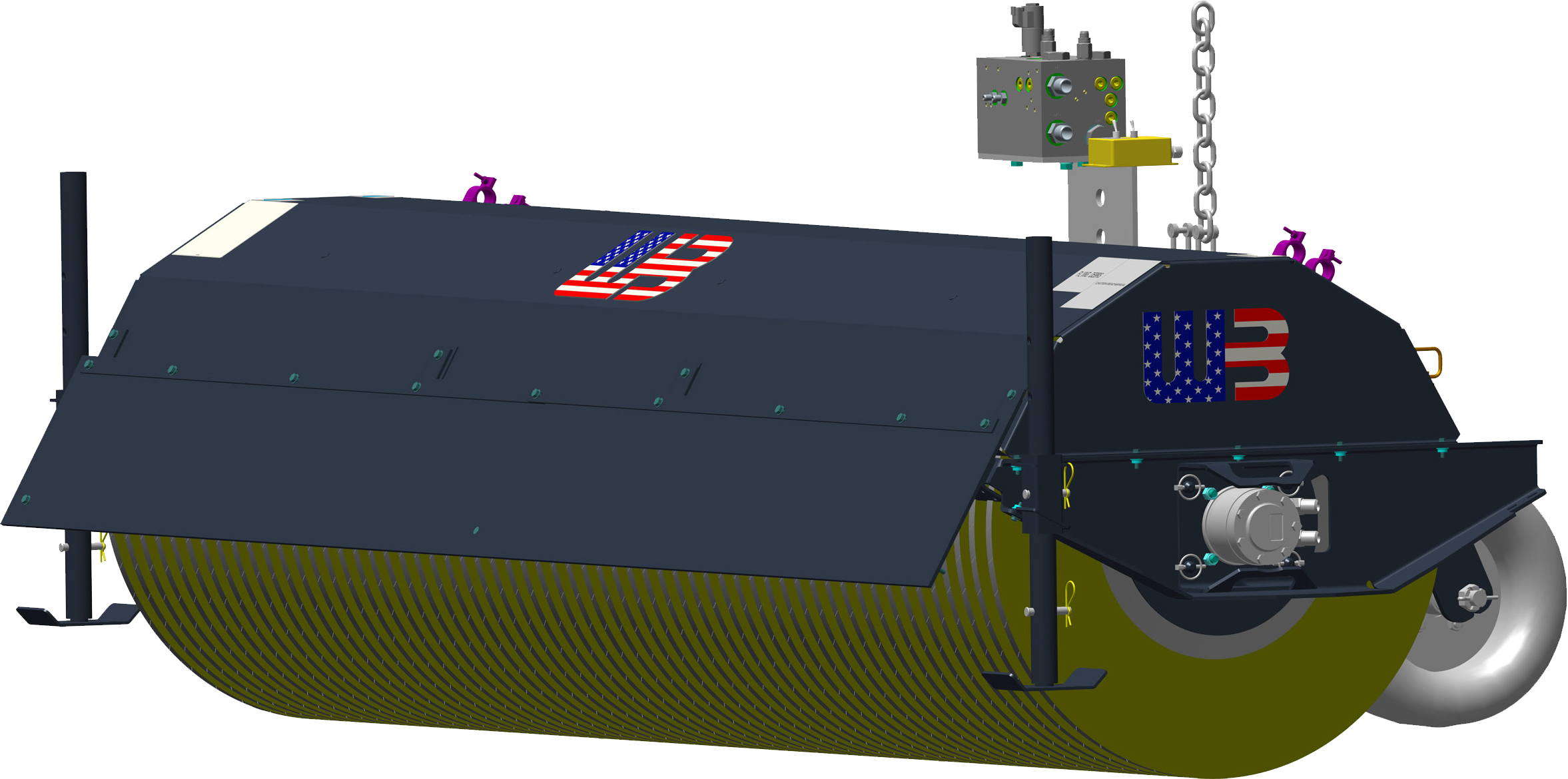

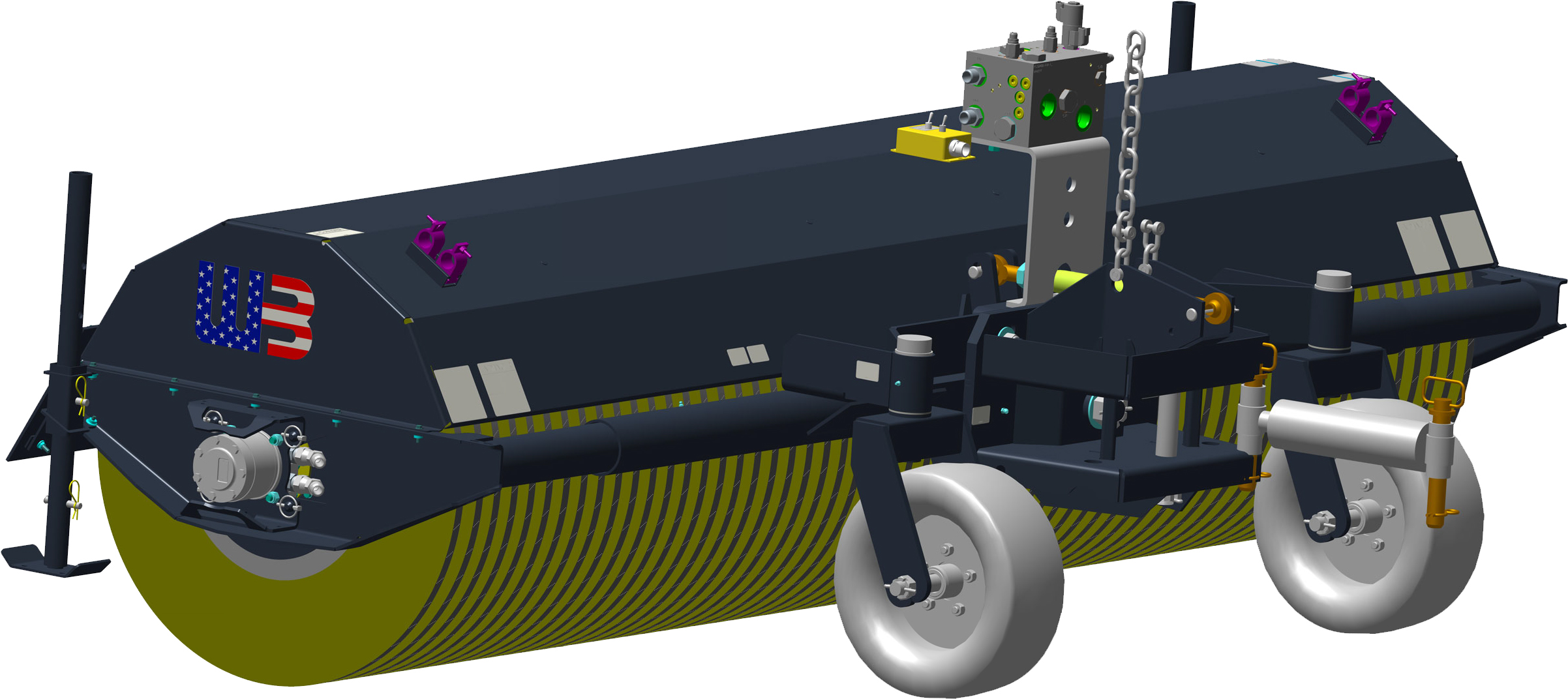

Wheel Loader Angle Broom

This hydraulic broom for loaders is the true rotary broom workhorse for any application. From snow, dirt, debris and grass this is the perfect solution for clearing and cleaning.

• Hydraulically driven rotary angle broom.
• Hydraulic swing capable of 30° left or right of center
• Storage stands for simple mounting, dis-mounting, and storage
• Brush head is lifted by means of the prime mover
• Sight Indicators

Sweeping Widths Available: 7', 8', 9', 10', 11', 12'

Brush Diameter: 32"

Core Diameter: 10"

Broom Speed: up to 250 RPM, dependent on prime mover

Drive: Hydraulic

Min. Hydraulic Flow: 28 GPM (Dual Motor Low Flow)

Max. Hydraulic Flow: 45 GPM (Dual Motor Standard Flow)

Options Available:

     Dirt Deflector
     Electric/Hydraulic Swing
     Independent Hydraulic System (Tractors only)
     Dual Low Flow Drive Motors
     Sprinkler Systems
     Front Spray Bar Only
     Oil Cooler
