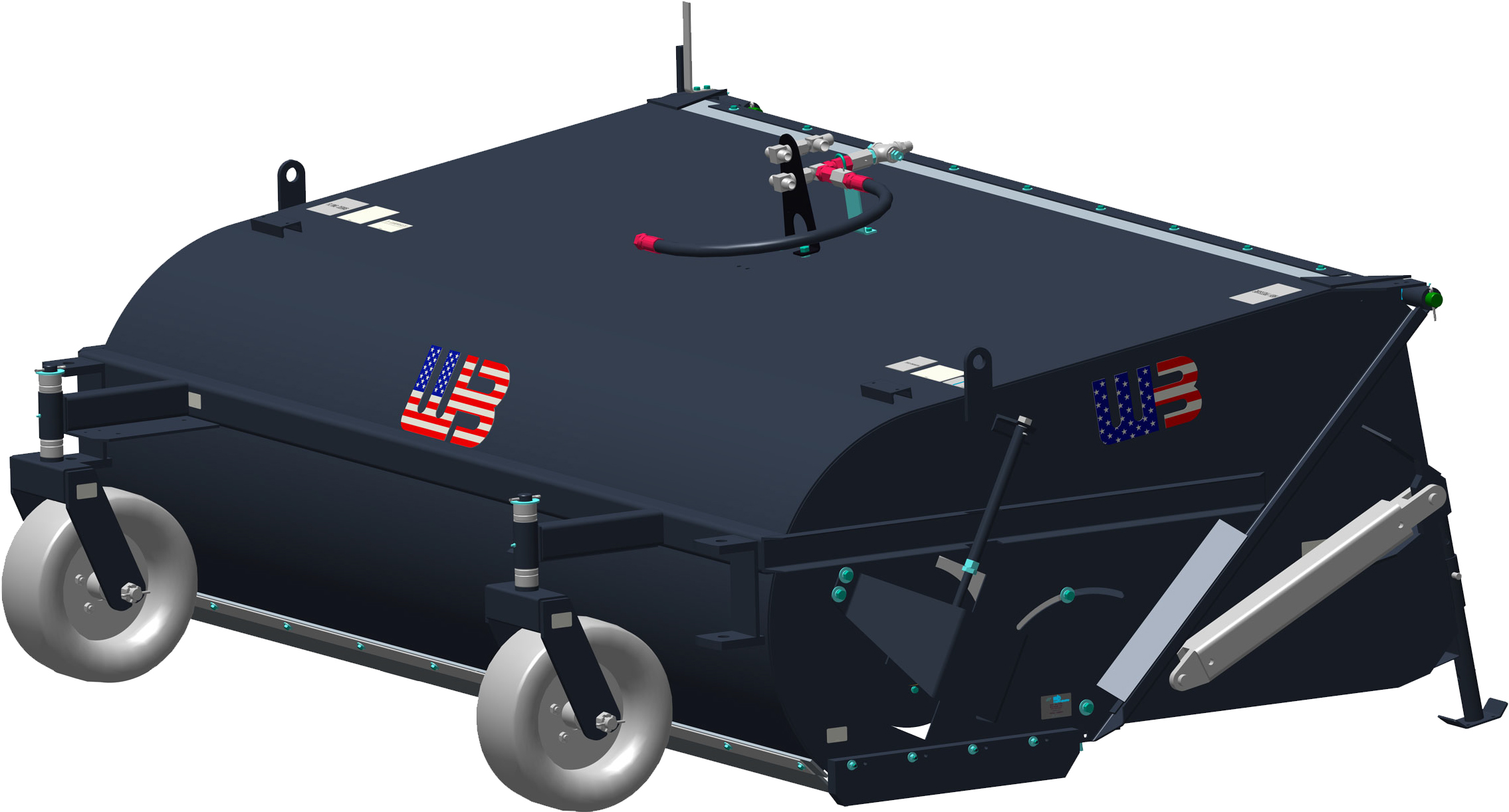

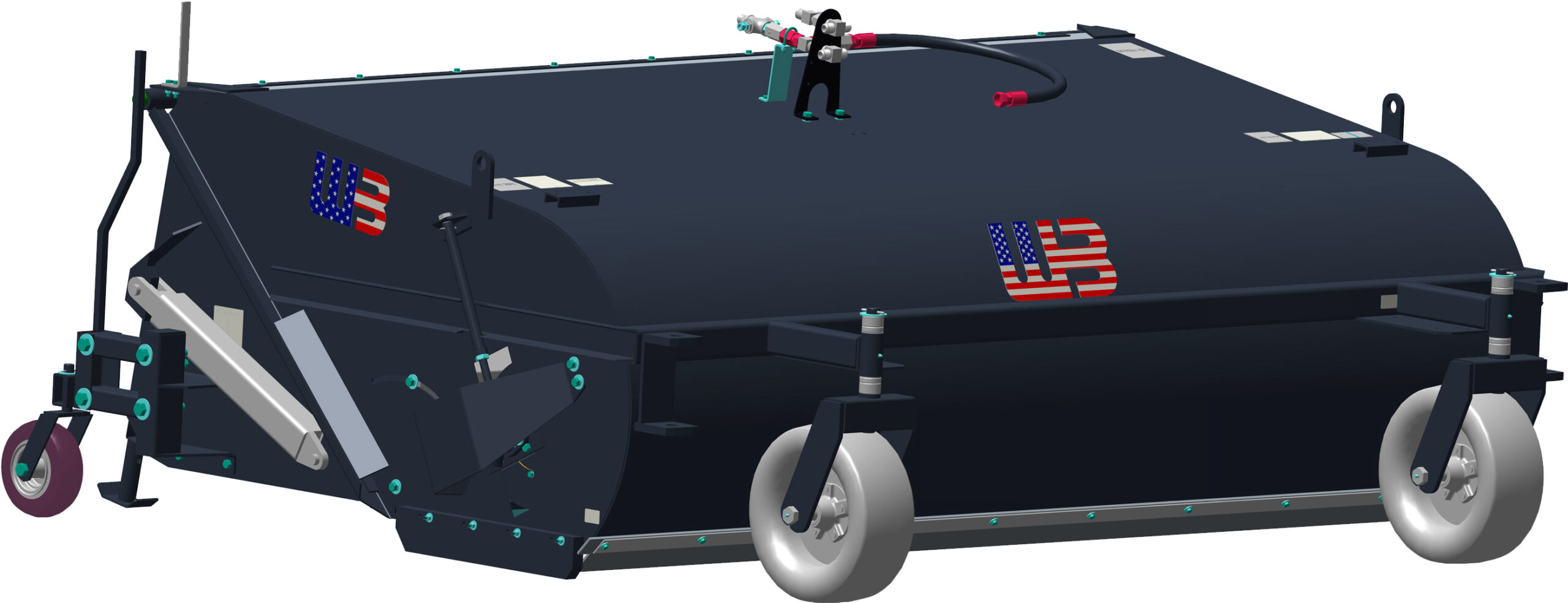

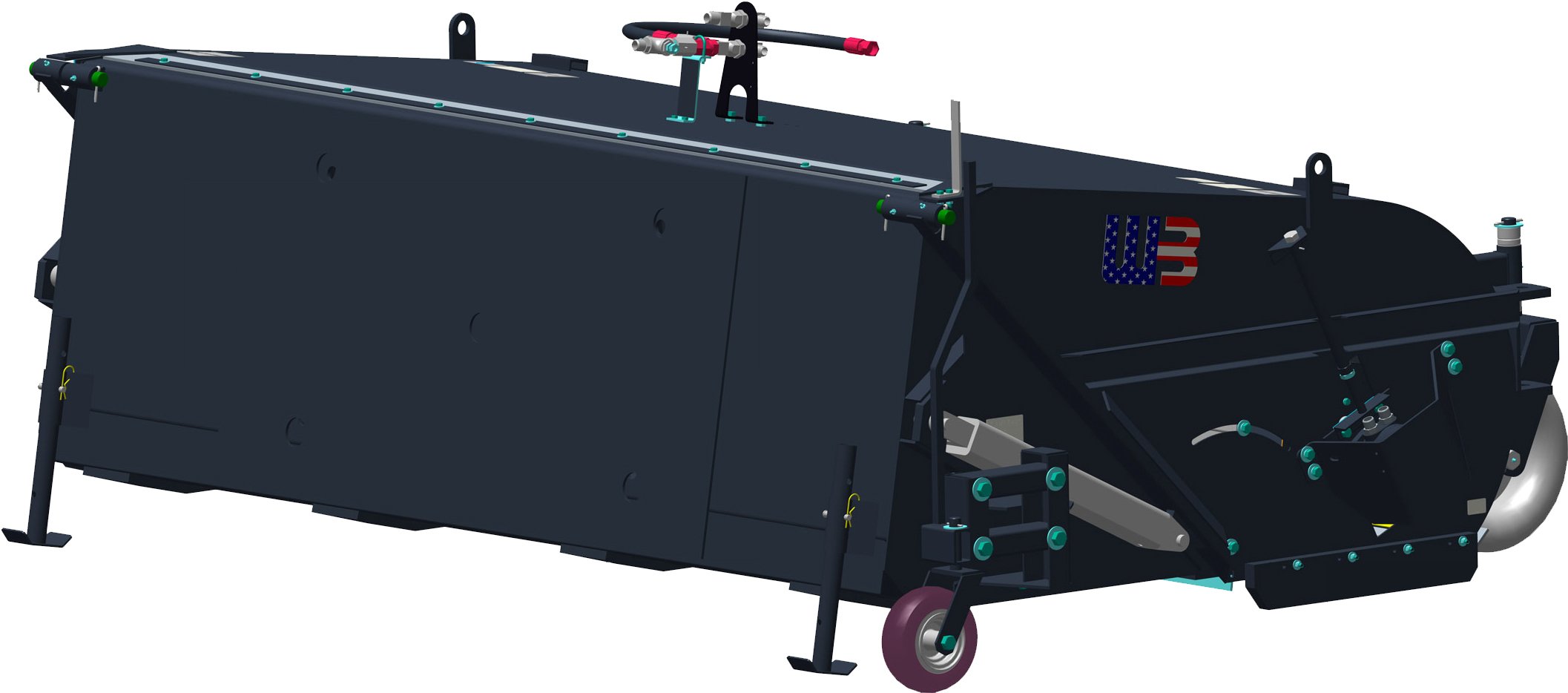

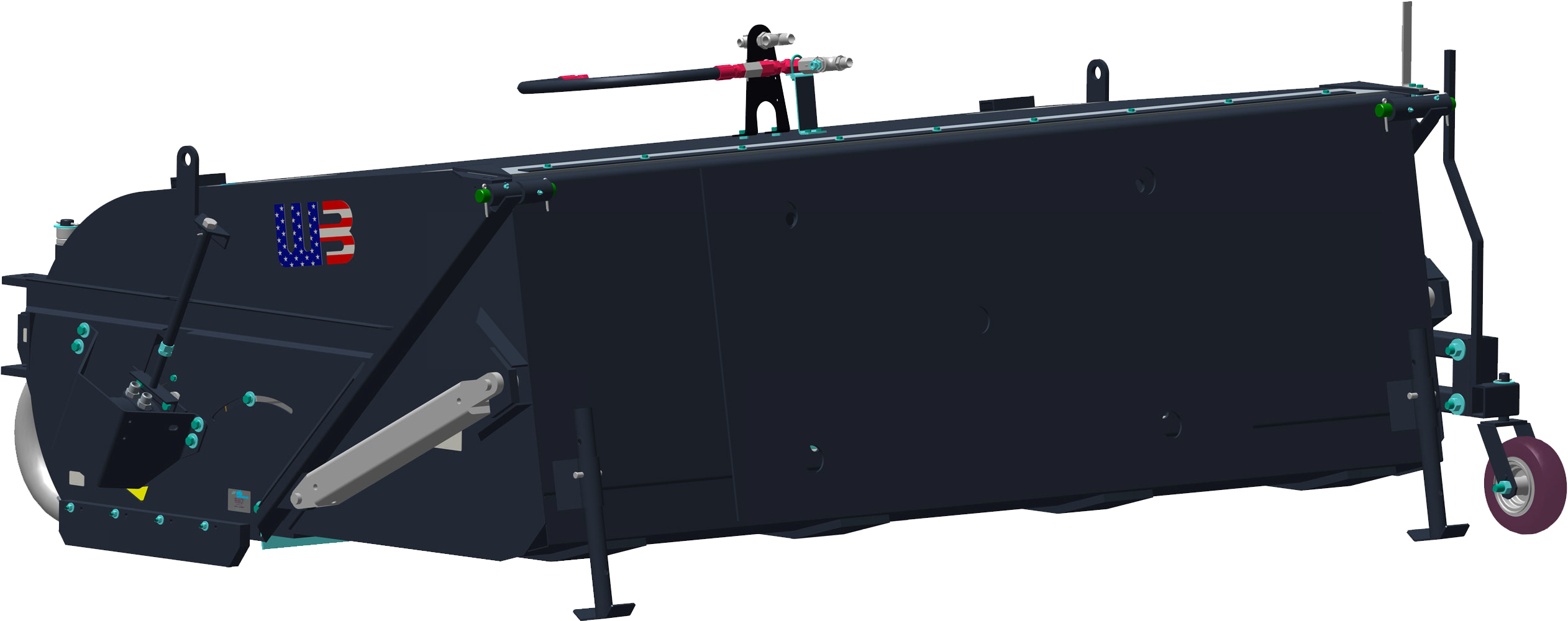

This hydraulic pick-up broom for large loaders is the ideal rotary broom for many applications. The hopper allows for complete clearing and cleaning of dirt, debris and grass.

  • Hydraulically driven rotary angle broom.
  • Heavy duty 16", 360° swivel casters
  • Sight Indicators
  • Brush and core assembly can be removed from frame without disconnecting hoses from drive motor(s)
  • Brush hopper has adjustable baffle to fill bucket completely
Sweeping Widths Available: 7', 8', 9'

Hopper Capacity:
     7’ – 33.0 cu. Ft.
     8’ – 37.5 cu. Ft.
     9’ – 42.0 cu. Ft.

Brush Diameter: 32"

Core Diameter: 10"

Broom Speed: up to 200 RPM, dependent on prime mover

Drive: Hydraulic

     Dual Low Flow Drive Motor
     Sprinkler System(s)
     Gutter broom(s)
